Branch Off Clip for Fiber Optic Cable Shrinkable Tube

Place of Origin:
Chengdu, China
Brand Name:
Focus Infra
Product Name:
Branch Off Clip
Material:
EVA/ PA
Color:
Orange, Yellow

EMAIL

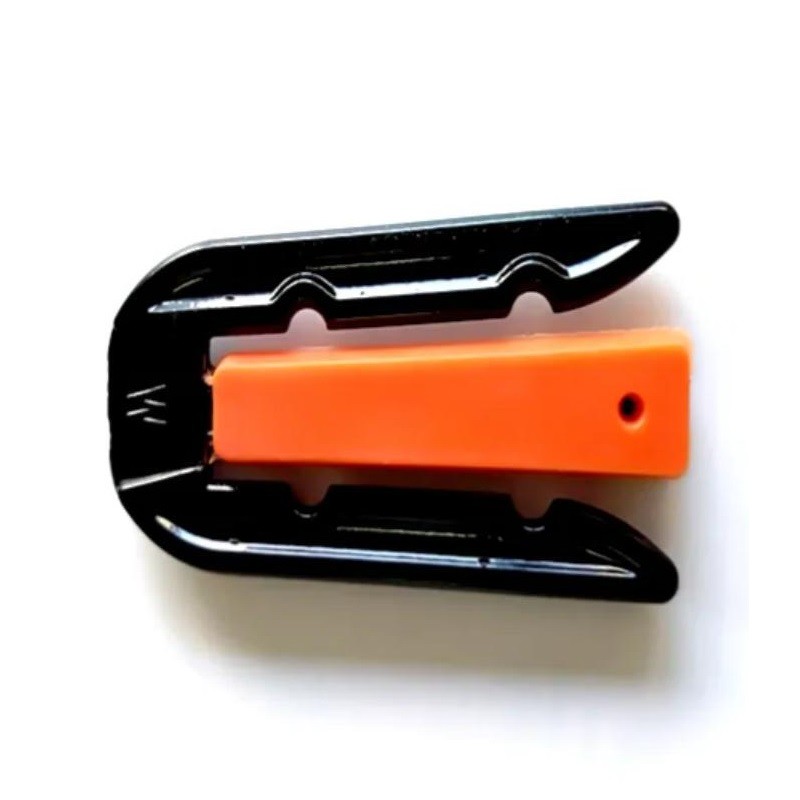

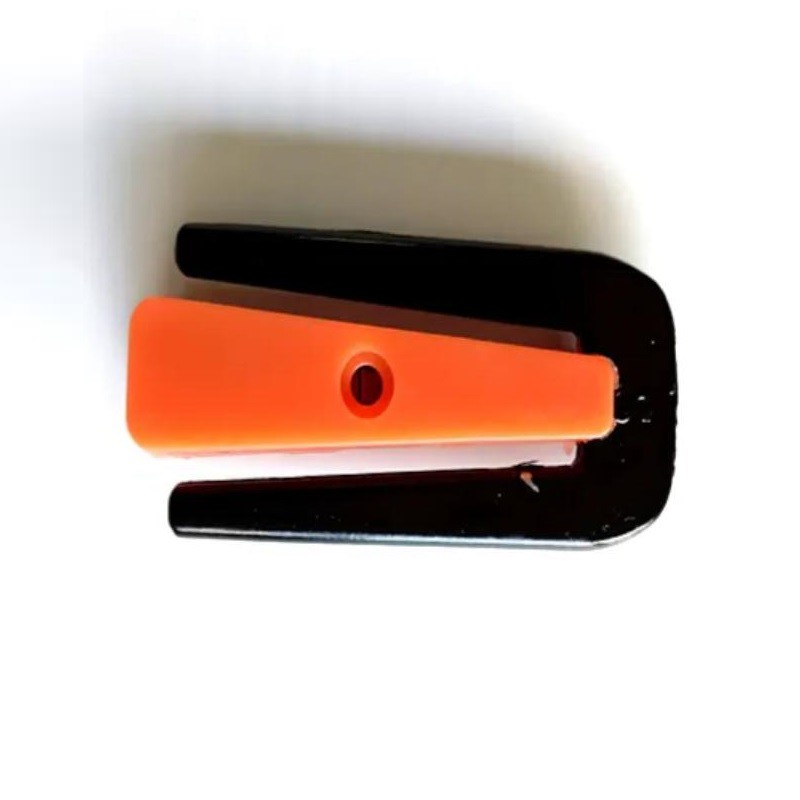

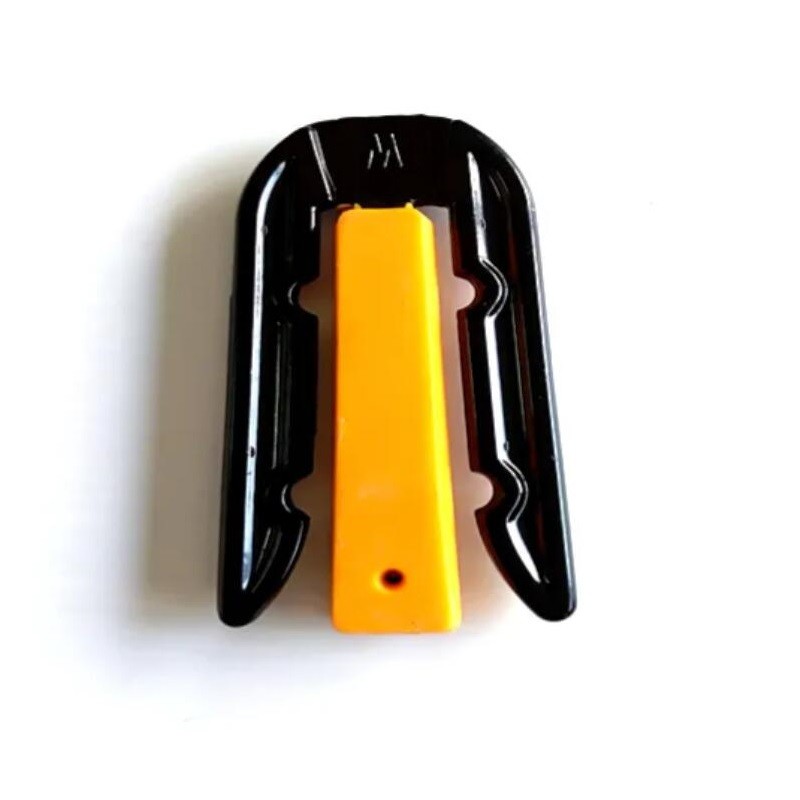

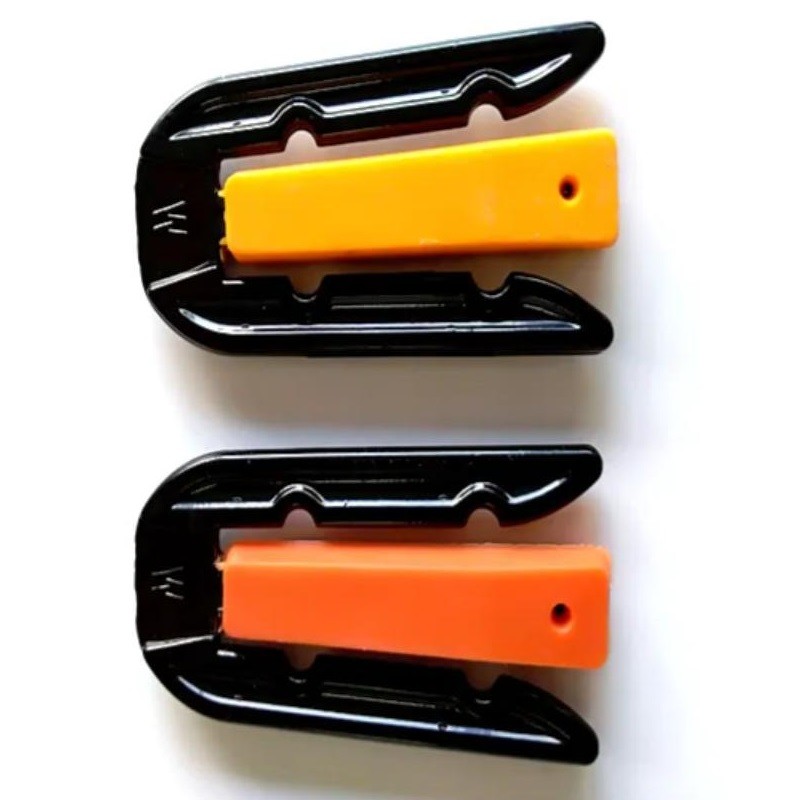

Branch Off Clip for Fiber Optic Cable Shrinkable Tube

Description:

  Branch off Clip is with color of orange usually. It is cast by aluminum alloy which resists to high temperature, and coating by high temperature adhesive, molding by EVA or PA hot melting adhesive. Branch off clips are used to branch a joint into two or three out. The hot melt in the center leg fills and seals the gaps at the branch-off joint.

Feature & Advantages:

Polyamide high quality adhesive

Soft point  EVA 120℃  PA 115℃

Fit for XAGE1000,XAGA550,XAGA500,XAGA530 (Raychem)

This product used in the heat-shrinkable tubing made the continuation of communication cable branch, can one divides into two, into three, then achieve a variety of cable perfect branch.


Specification:

Model

Size

For   Communication cable

Heat   shrink Tube for Fiber Optic Closure

Small

65*28

Less   than 200

Dia.   40-65mm heat shrink tube

Medium

85*40

200-400

Dia.   75-95mm heat shrink tube

Large

104*59

400-1200

Dia.   105-140mm heat shrink tube

Extra   Large

127*68

More   than 1200


Heat Shrink Tube
