Ground Cable Corrosion Resistant Yellow & Green Heat Shrink Tubings

Ground Cable Corrosion Resistant Yellow & Green Heat Shrink Tubings

Shrink temperature:105℃~125℃
Operating temperature:-40℃~+125℃
Shrink ratio: 2:1
Breakdown voltage: 600V~1kV.
Standard color: Yellow & Green

Ground Cable Corrosion Resistant Yellow & Green Heat Shrink Tubings

Ground Cable Corrosion Resistant Yellow & Green Heat Shrink Tubings is made of environmentally friendly polyolefin through co-extrusion and radiation of the two color masterbatches with extruders and special electronic accelerators separately. The product is flexible and highly flame

retardant, with lasting bright color and stable performance. This product is widely used to identify ground wire and terminals or
insulate in-line connections.

Features:

1.Operating Temperature:-40℃~+125℃;
2.Shrink Temperature: 105℃~125℃
3.Flexible,Flame retardant;
4.Shrink ratio: 2:1

Applications:
1. Wire splices and terminations
2. Wire harnesses
3. Mechanical protection and fire-resistant covering
4. Insulation and strain relief of terminals and connections

Product Selection:

Product Code:	ID after Free Recovery (mm)	Standard Length (m/roll)
Φ1.0	0.5	200
Φ1.5	0.75	200
Φ2.0	1.0	200
Φ2.5	1.25	200
Φ3.0	1.5	200
Φ4.0	2.0	100
Φ5.0	2.5	100
Φ6.0	3.0	100
Φ7.0	3.5	100
Φ8.0	4.0	100
Φ10.0	5.0	100
Φ12.0	6.0	50
Φ13.0	6.5	50
Φ16.0	8.0	50
Φ18.0	9.0	100
Φ20.0	10.0	100
Φ22.0	11.0	100
Φ25.0	12.5	50
Φ28.0	14.0	50
Φ30.0	15.0	50
Φ35.0	17.5	50
Φ40.0	20.0	50
Φ50.0	25.0	25
Φ60.0	30.0	25
Φ70.0	35.0	25
Φ80.0	40.0	25
Φ90.0	45.0	25
Φ100.0	50.0	25
Φ120.0	60.0	15
Φ150.0	75.0	15

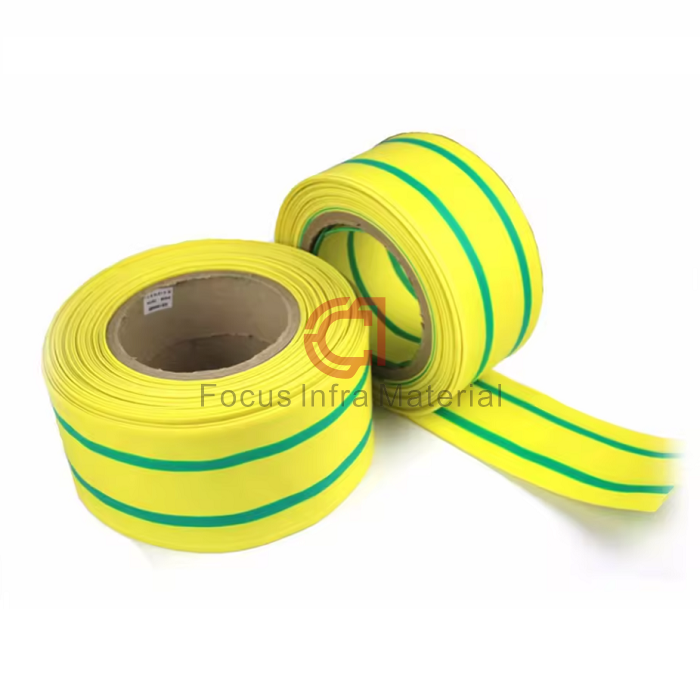

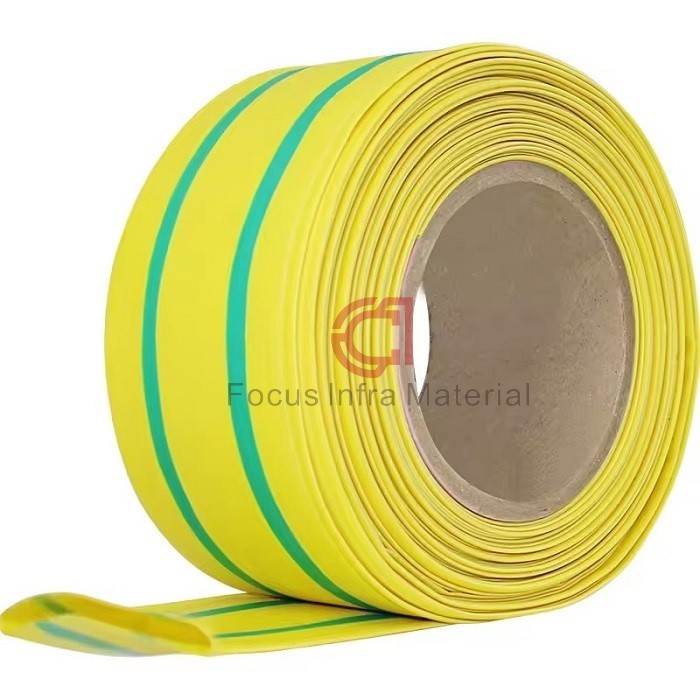

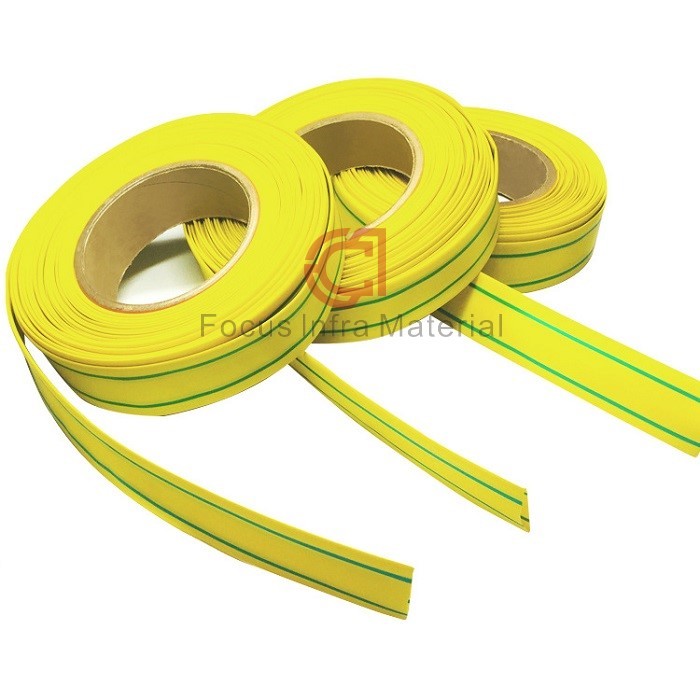

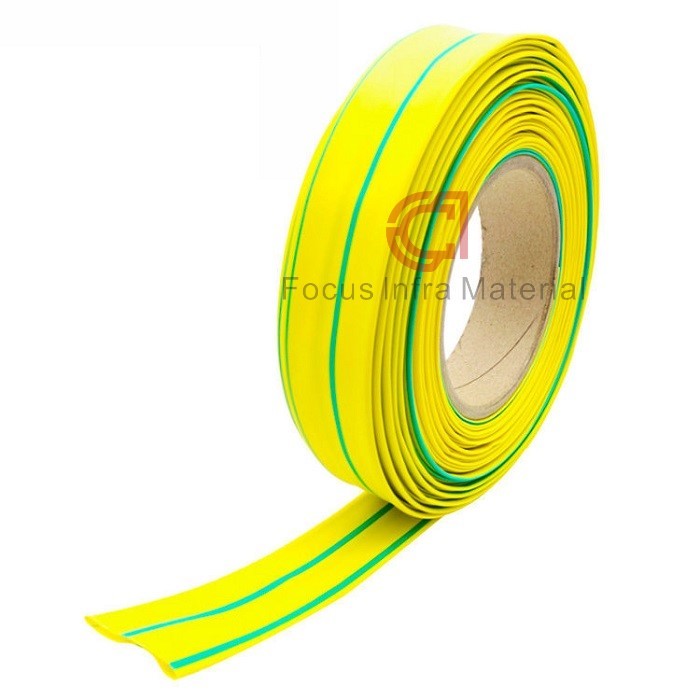

Yellow Green Heat Shrink Tube
