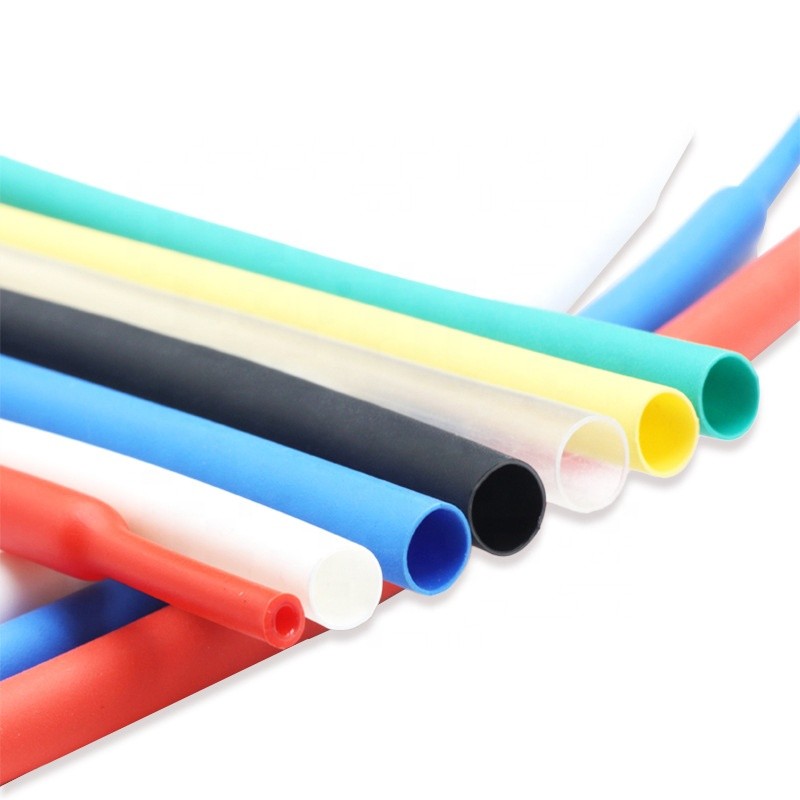

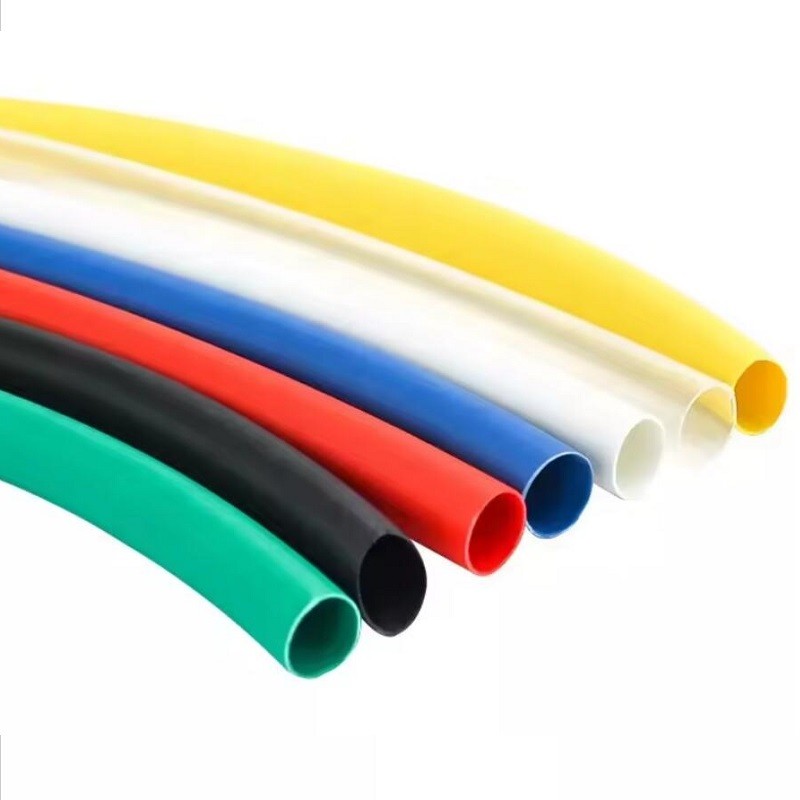

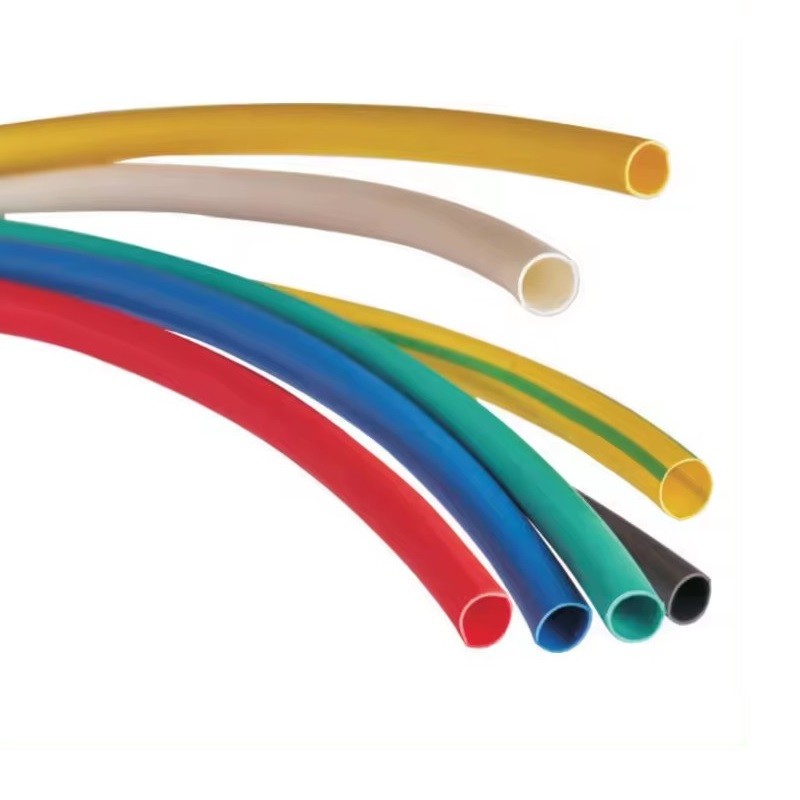

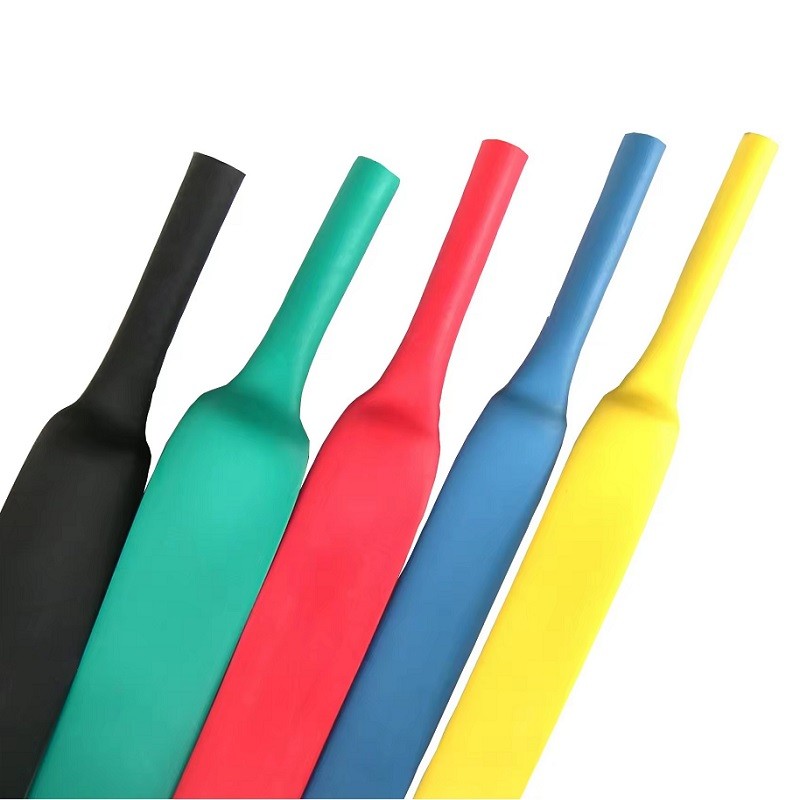

Heat-shrink Tube Wire Insulation Cover Ultra Thin Heat Shrink Tubing for Wire Protection

Heat-shrink Tube Wire Insulation Cover Ultra Thin Heat Shrink Tubing for Wire Protection

Shrink temperature:125℃
Operating temperature:-40℃~+125℃
Shrink ratio: 2:1, 3:1, 4:1
Breakdown voltage: 600V~1kV.
Standard color: Black, Red, Yellow, White, Blue, Green, Clear, Transparent.

Heat-shrink Tube Wire Insulation Cover Ultra Thin Heat Shrink Tubing for Wire Protection

Description:

Heat-shrink Tube Wire Insulation Cover Ultra Thin Heat Shrink Tubing for Wire Protection is composed of radiation cross-linked Polyolefine material, with excellent physical and chemical electrical properties, is a new type of environmentally friendly halogen-free flame-resistant sleeving, the main functions of the product are wire harness protection, electrical insulation of connections, rust and corrosion protection of solder joints, mechanical protection. It can provide insulation protection for wires, cables and wire terminals etc. With low temperature shrinkage, soft and other characteristics.

Application:

Electrical insulation & protection

Halogen free, environmental friendly

Lightweight harness

Cable management

Features:

Ultra thin wall

Flexible

Zero halogen

Flame retardant

Low smoke generation if burning

Operating temperature: -55℃ to 125℃

Fully shrink temperature: ≥110℃

RoHS and Sony compliant

Technical Data:

Property	Test Method	Typical Performance
Tensile strength ( MPa )	ASTM D 2671	≥10.4
Ultimate elongation ( % )	ASTM D 2671	≥ 2 00
Tensile strength after heat aged ( MPa )	1 58 ℃×168h	≥7.3
Ultimate elongation after heat aged ( % )	1 58 ℃×168h	≥100
Longitudinal chang(%)	ASTM D 2671	-5% ~ +5%
Flammability	ASTM D 2671 C method	VW-1
Dielectric strength ( kV/mm )	ASTM D 149	≥ 15
Volume resistivity ( Ω·cm )	ASTM D 876	≥10¹⁴

heat shrink tube

Heat shrink tube
