Place of Origin:
Chengdu, China
Brand Name:
Focus Infra
Max Cable Diameter:34mm
Min Cable Diameter:10mm
Wall Thickness(After Shrinkage): 3.8mm
Length: 250~1200mm

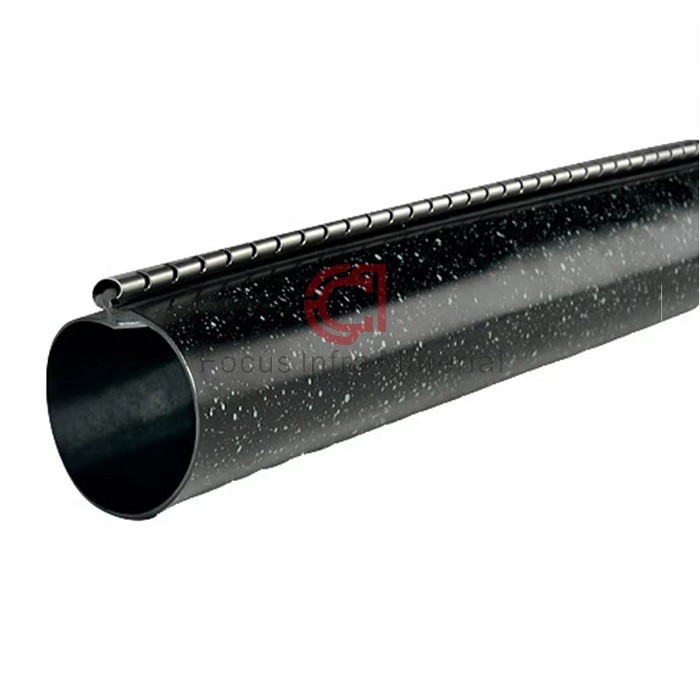

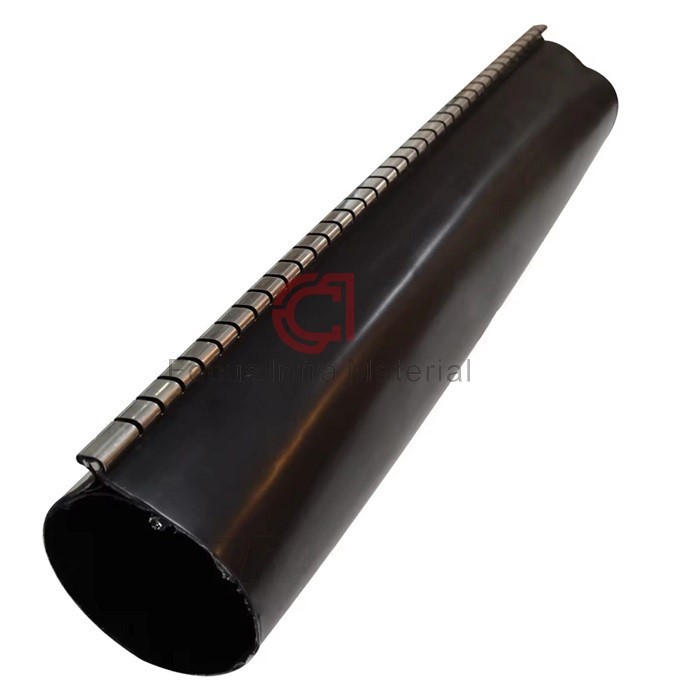

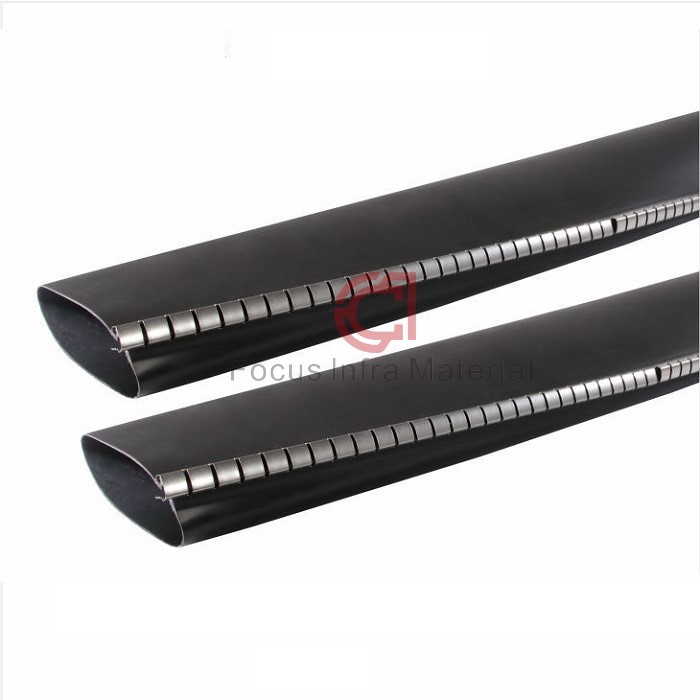

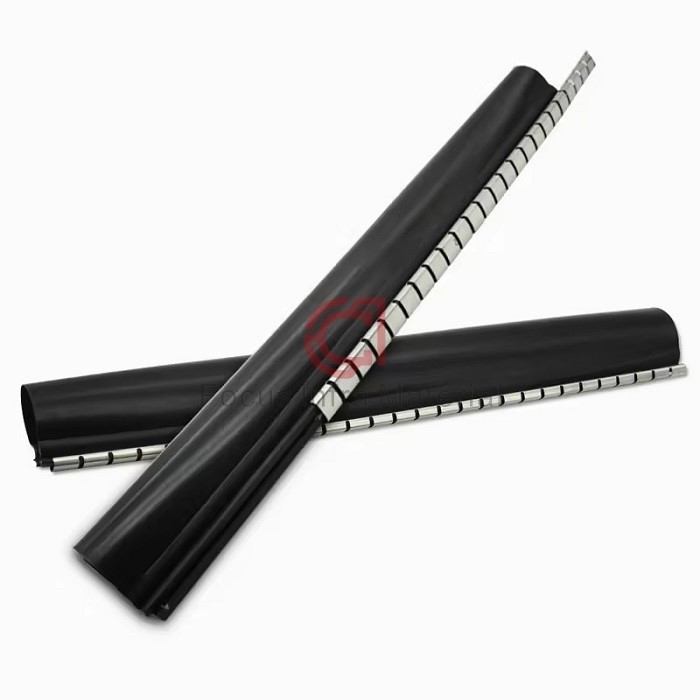

RSBAW Fiber Reinforced Heat Shrink Wraparound Cable Repair Sleeve
Description:
The heat shrink tube is mainly used for the copper busbar in the busbar bridge to protect and insulate it. It will reduce the gap between busbars and shorten the phase spacing. The product has a good insulation effect on all kinds of curved rectangular and circular bus bars.
Specification:
MFG P/N | Applicable Cable Diameter | Wall Thickness (mm) | Length Available | ||
Maximum (mm) | Minimum (mm) | As Supplied | After Shrinkage | (mm) | |
RSBW 30/12 | 43 | 8 | 1.3 | 3.8 | 250 ~ 1200 |
RSBW 40/12 | 40 | 12 | 1.2 | 3.8 | 250 ~ 1200 |
RSBW 50/17 | 50 | 17 | 1.3 | 3.8 | 250 ~ 1200 |
RSBW 65/24 | 65 | 24 | 1.2 | 3.8 | 250 ~ 1200 |
RSBW 85/27 | 85 | 27 | 1.3 | 3.8 | 250 ~ 1200 |
RSBW 100/27 | 100 | 27 | 1.4 | 3.8 | 250 ~ 1200 |
RSBW 120/40 | 120 | 40 | 1.4 | 3.8 | 250 ~ 1200 |
RSBW 150/50 | 150 | 50 | 1.4 | 3.8 | 250 ~ 1200 |
RSBW 160/50 | 160 | 51 | 1.3 | 3.8 | 250 ~ 1200 |
RSBW 170/51 | 170 | 51 | 1.2 | 3.8 | 250 ~ 1200 |
RSBW 180/51 | 180 | 51 | 1.1 | 3.8 | 250 ~ 1200 |
RSBW 195/52 | 195 | 51 | 1.0 | 3.8 | 250 ~ 1200 |
Applications:
Ideal for cable rejacketing and sealing across low, medium, and high voltage cable accessories.
Elevate your cable repair capabilities with RSBAW Wraparound Cable Repair Sleeve.
Chengdu Focus Infra Material Co.,Ltd
–––Professional heat shrinkable supplier
Company was established in 2014. With the sustained business conception of "adhering to client-centric, offering prompt service, embracing the values of Integrity, keeping on the improvement, striving to meet rising demand of clients", we earn the recognition from existing and new clients.
We are specialized in research,develop,manufacture and sale of radiation cross-linked heat shrinkable material and other functional polymer material. Our production apply to a wide range of applications in electronics, electrical, energy, telecommunication, automotive, aviation and marine vessels. We are committed to bring solutions our customers. New products are continuously being developed and added to our line. Please contact our dedicated sales and service team for the latest news.
