Size: 30mm
Color: Transfer
Application:Fiber Fusion Protection
Package: 100pcs/bag, 24pcs/bag, customize packed
Daily Capacity: 500000pcs

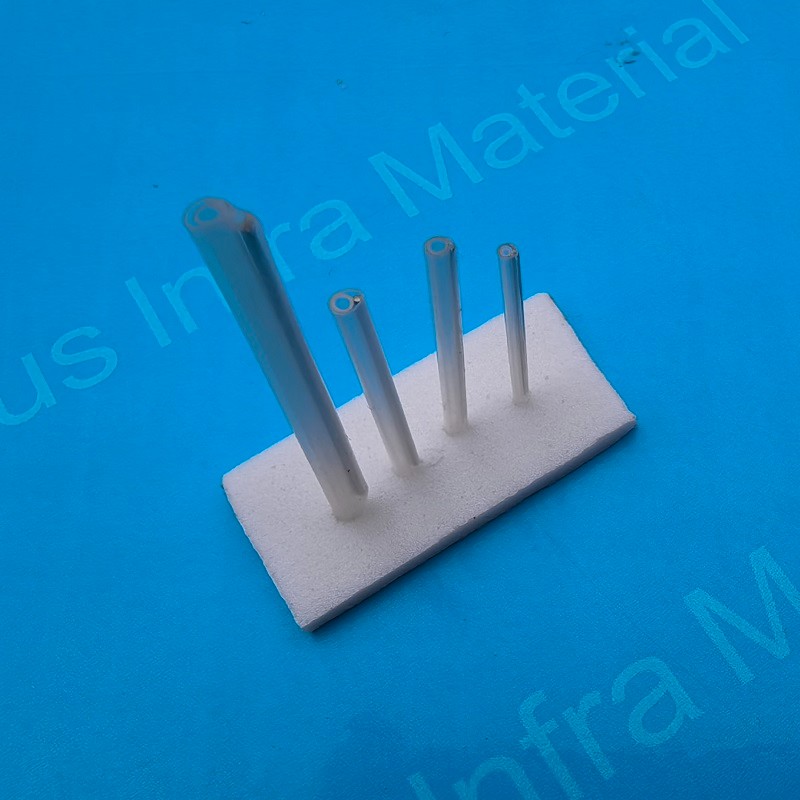

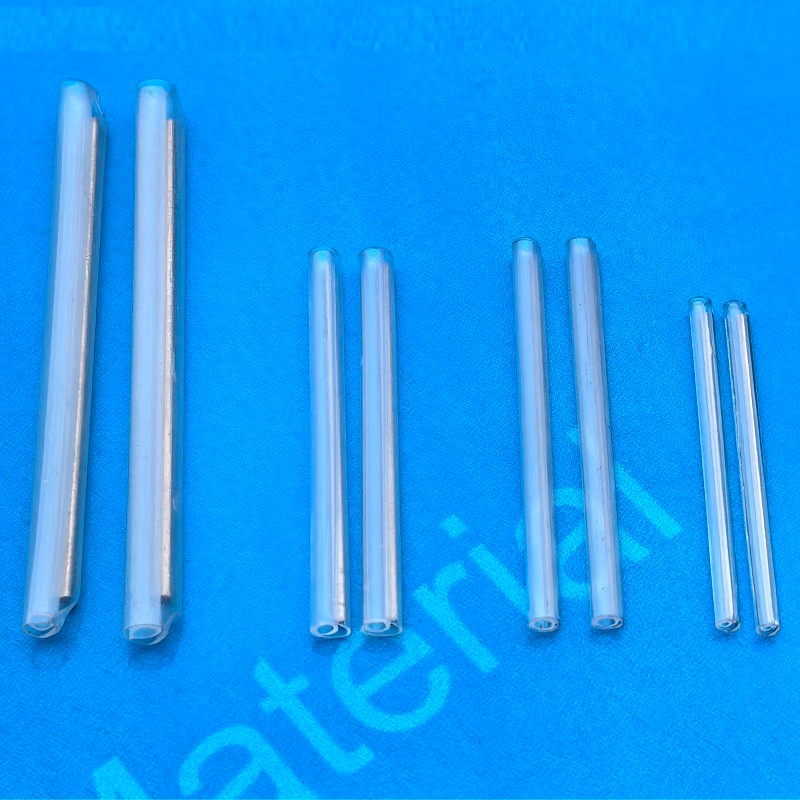

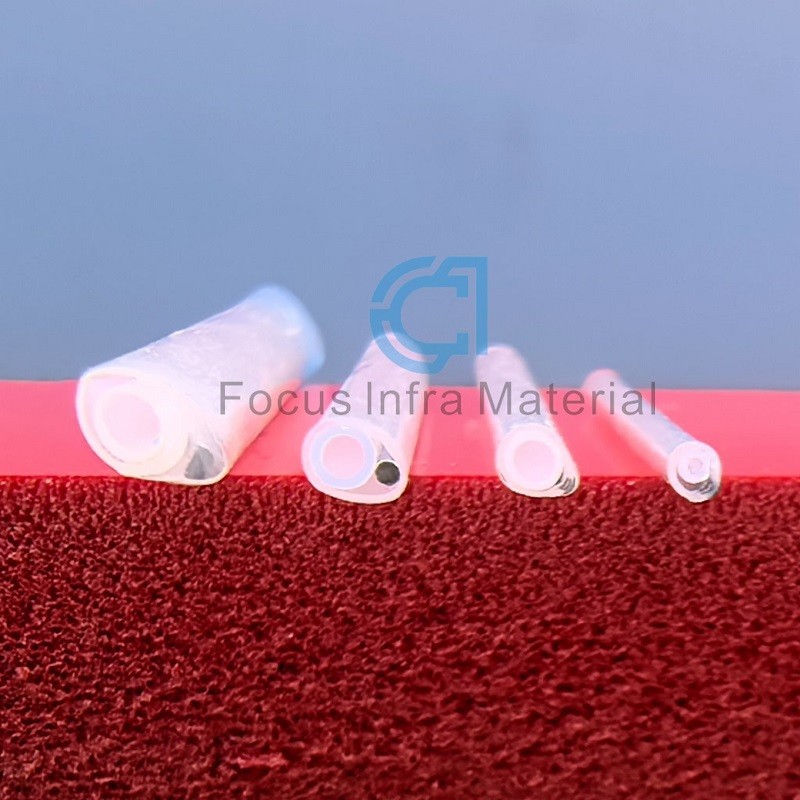

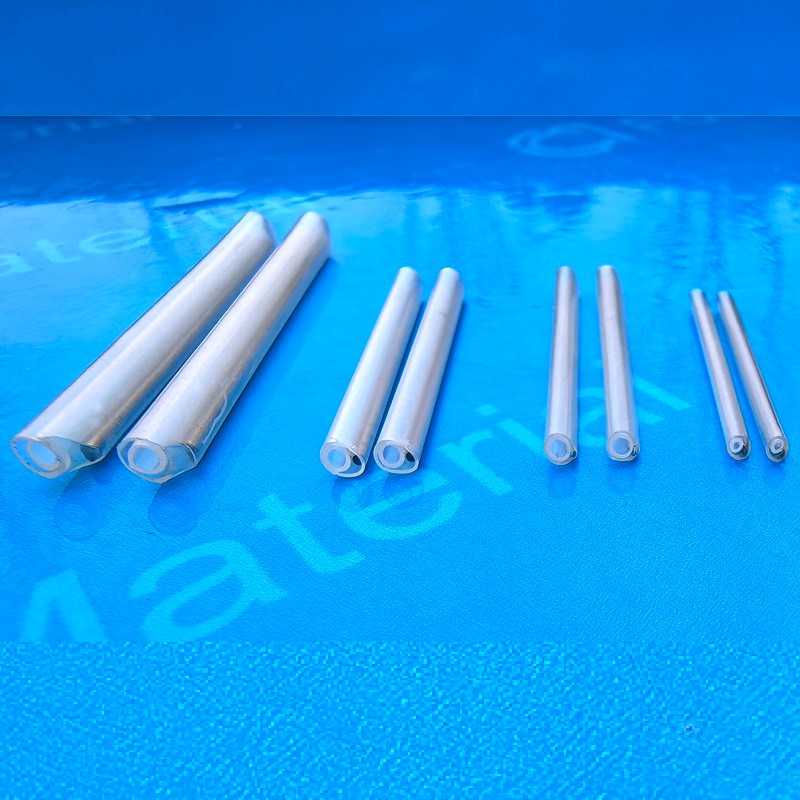

30mm Length 5G 6G Fiber Optic Splice Protect Sleeves for 900um Fiber
Description:
The 5G and upcoming 6G network eras have brought unprecedented challenges to network bandwidth, transmission rate and stability. In order to meet the needs of high-speed and large-capacity data transmission, the scale of fiber optic network construction continues to expand. As the core link of fiber optic network construction, the efficiency and reliability of fiber optic splicing technology directly affect the performance of the entire network. The quality of protection after fiber splicing is directly related to the long-term stable operation of the network. As a device that accommodates a large number of spliced optical fibers, the capacity of the splice tray directly determines the efficiency and cost of network construction. With the expansion of network scale and the continuous increase in optical fiber density, the demand for high-density and large-capacity splice trays is growing. Chengdu Focus Infra Materials Company, as an enterprise dedicated to the research and development of optical fiber splicing technology, has made active explorations and innovations in meeting this market demand. This article will focus on the improvement of Chengdu Focus Infra Materials Company in the technology of optical fiber splicing protection sleeves and its contribution to the increase in the capacity of splice trays.
Chengdu Focus Infra Materials Company has developed a new type of fiber fusion protection tube for 900μm optical fiber cores. After shrinking, the diameter of the protection tube can be reduced to 1.95mm. This technological breakthrough has significantly increased the capacity of the fiber splicing tray. In order to deeply analyze its impact, we will discuss it from the following aspects.
Product advantages:
1. Specially designed by the cross-linked polyolefin, hot melt tube and enhanced stainless steel wire optical fiber splice protection devices, does not affect the fiber optic light guide features.
2. Bare fiber hot melt, stainless steel needle, protect fiber
3. Industrial sealing treatment at both ends of the tube to keep the steel needle from falling out
4. Selected 304 high-quality stainless steel, not easy to rust, corrosion-resistant, and anti-aging
5. The double-layer shell is made of environmentally friendly PE and has a long service life
6. Better protection of bare fiber and prolong the service life of fiber
Technical Parameters:
Specification | Test method | Typical data |
Tensile strength(MPa) | ASTM D 2671 | 18 |
Elongation at Break (%) | ASTM D 2671 | 700 |
Density(g/cm2) | ISO R1183D | 0.94 |
Dielectric strength (KV/mm) | IEC 243 | 20 |
Permittivity | IEC 243 | 2.5 |
Length rate of change (%) | ASTM D 2671 | +5 |
