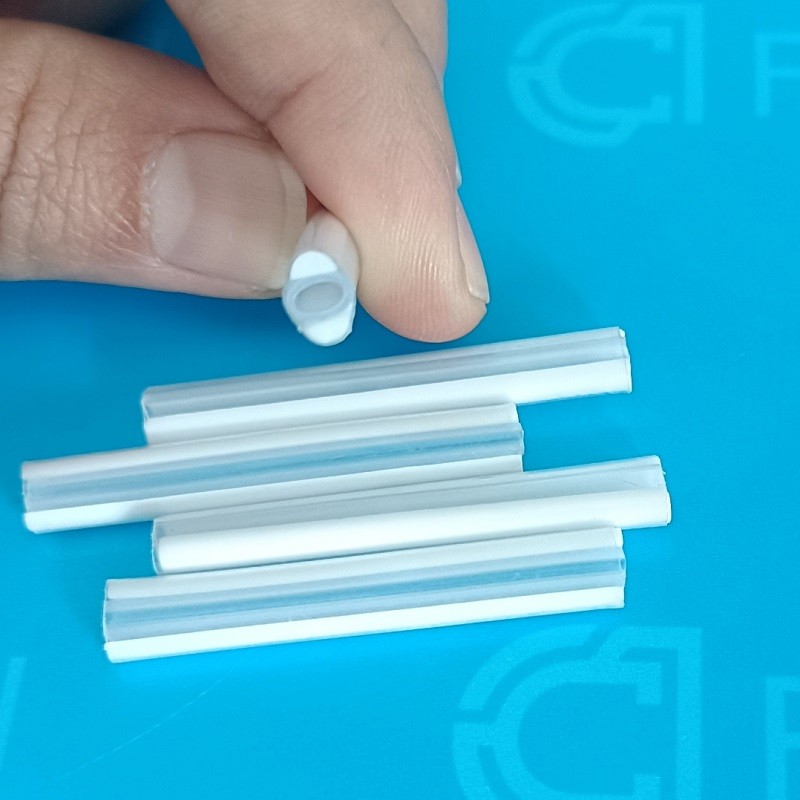

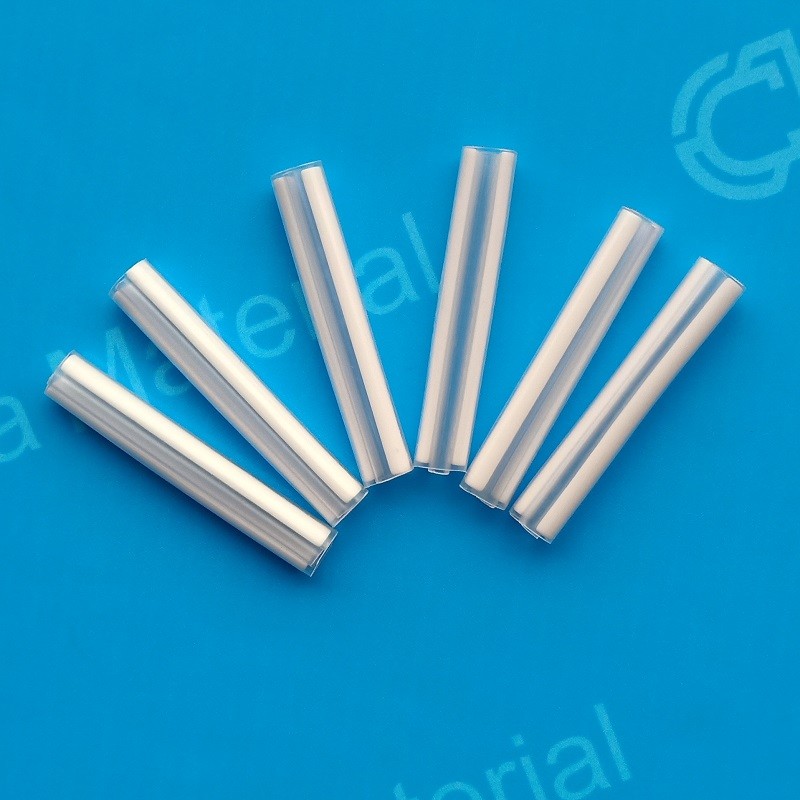

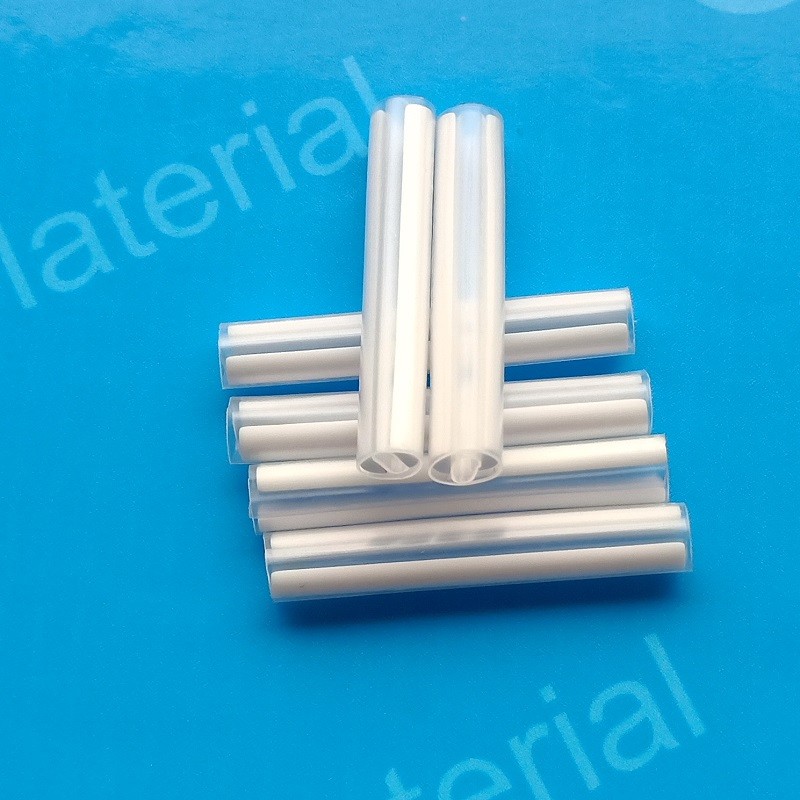

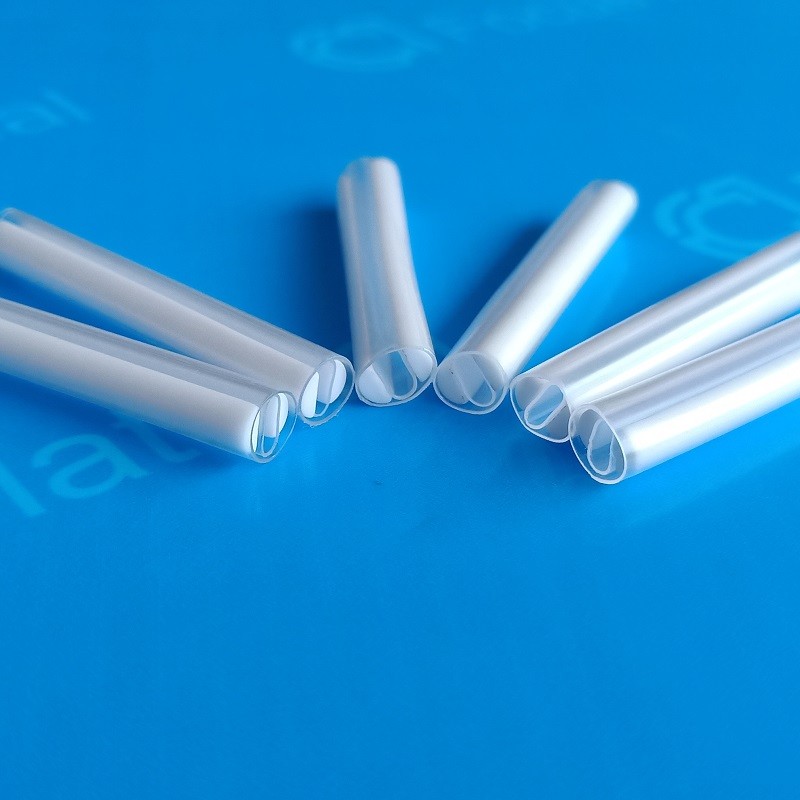

8 Core Fiber Optic Heat Shrink Sleeves for Ribbon Fiber Cable Fiber Optic Sleeve

Application: FTTH Project
Length: 40mm
Steel Rod: Double Rod
Suitable: 4core, 6core, 8core, 12core
Package: 50pcs/bag, 24pcs/bag, customize packed
Daily Capacity: 500000pcs

EMAIL

8 Core Fiber Optic Heat Shrink Sleeves for Ribbon Fiber Cable Fiber Optic Sleeve


Description:

  Ribbon Fiber Fiber Optic Protection Sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing. The sleeves can be divided into two types (single sleeve and ribbon sleeve) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function. Ribbon sleeve means there are several cores for the fiber. Chengdu Focus Infra Materials company offer ribbon fiber splice sleeves includes 4cores, 6cores, 8cores, 12 cores (for types).

This product is constructed with an inner EVA meltable adhesive tube, a polyolefin heat shrink outer tube and either single or dual strength members. Our single strength member sleeve which has become an industry standard, has an after shrink diameter of 4.9 X 4.4 mm, and utilizes a special glass member.


Product advantages:

1. Specially designed by the cross-linked polyolefin, hot melt tube and enhanced stainless steel wire optical fiber splice protection devices, does not affect the fiber optic light guide features.

2. Bare fiber hot melt, stainless steel needle, protect fiber

3. Industrial sealing treatment at both ends of the tube to keep the steel needle from falling out

4. Selected 304 high-quality stainless steel, not easy to rust, corrosion-resistant, and anti-aging

5. The double-layer shell is made of environmentally friendly PE and has a long service life

6. Better protection of bare fiber and prolong the service life of fiber


Technical Parameters:

Specification

Test method

Typical data

Tensile strength(MPa)

ASTM D 2671

18

Elongation at Break (%)

ASTM D 2671

700

Density(g/cm2)

ISO R1183D

0.94

Dielectric strength (KV/mm)

IEC 243

20

Permittivity

IEC 243

2.5

Length rate of change (%)

ASTM D 2671

+5
