45mm Drop Cable Fiber Optic Patchcord Joint Protection Fiber Heat Shrink Sleeves

Application: FTTH Project
Length: 45mm, 60mm. Cutomize Length Support
Steel Rod: Double Rod
Inner Diameter: 3.9mm
Package: 50pcs/bag, 24pcs/bag, customize packed
Daily Capacity: 500000pcs

EMAIL

45mm Drop Cable Fiber Optic Patchcord Joint Protection Fiber Heat Shrink Sleeves


Description:

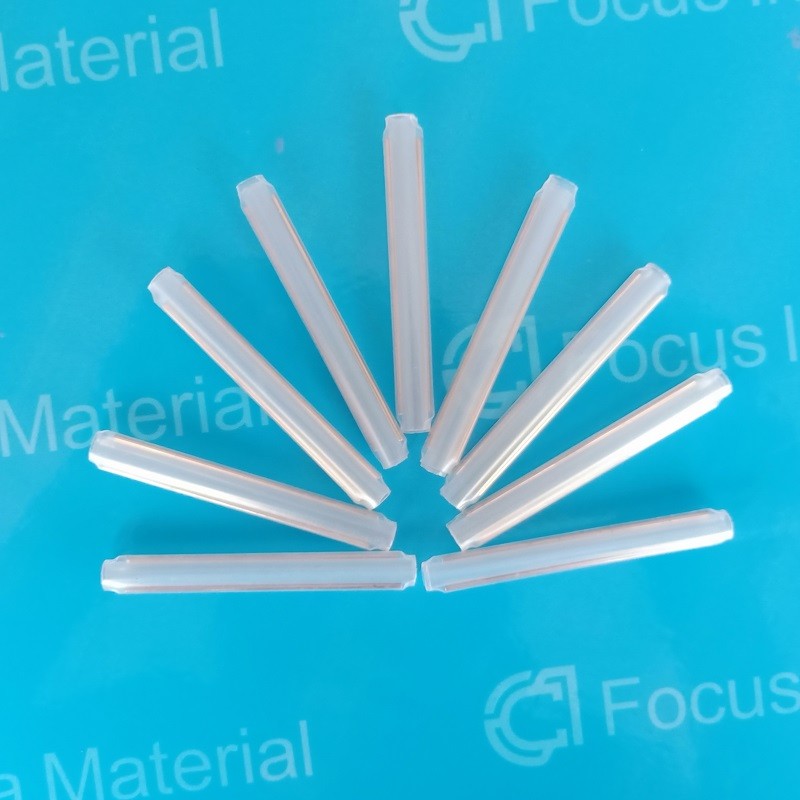

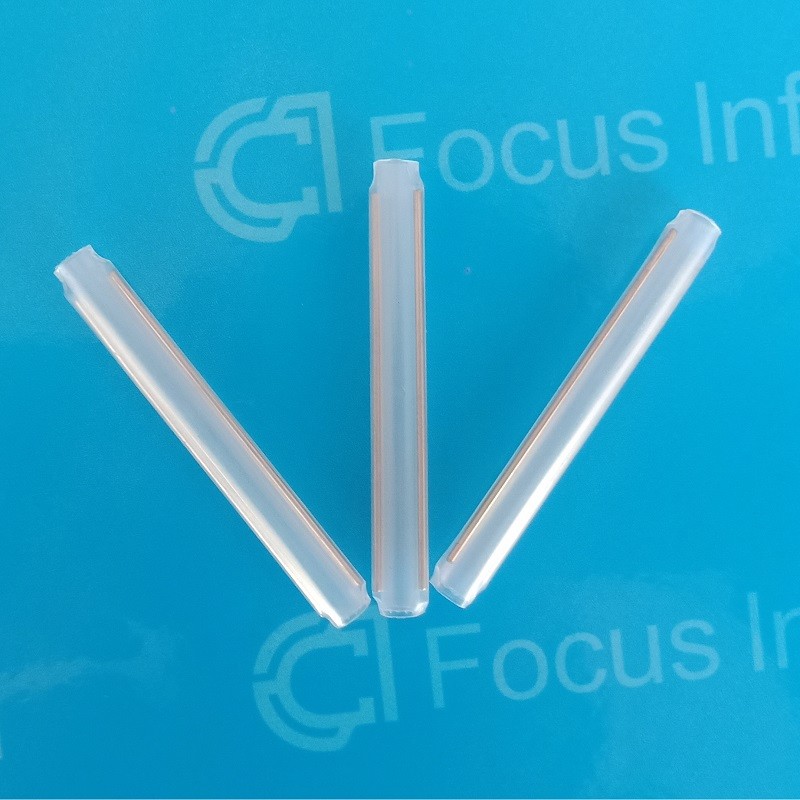

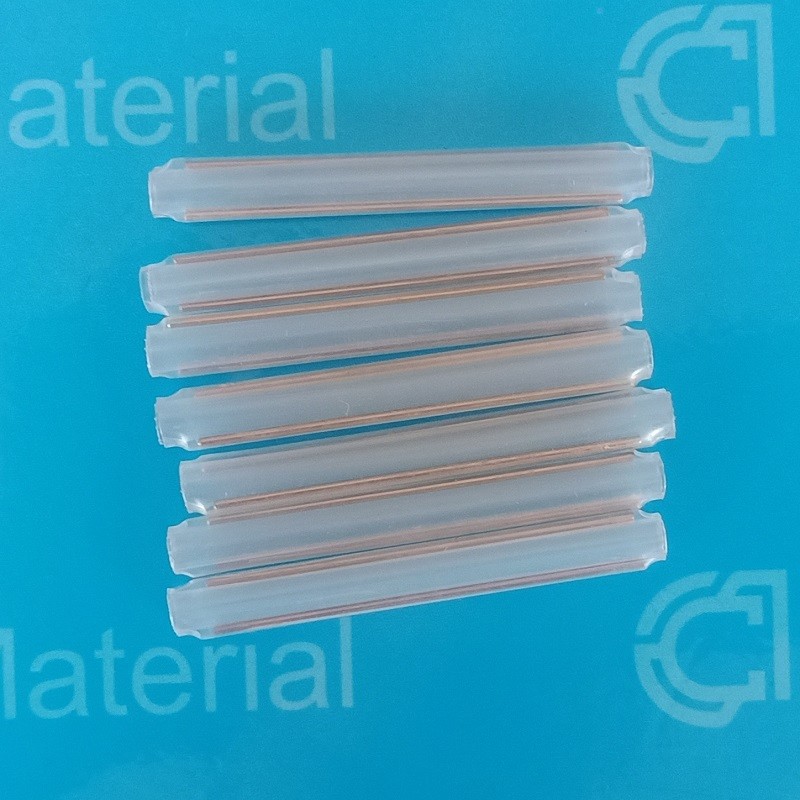

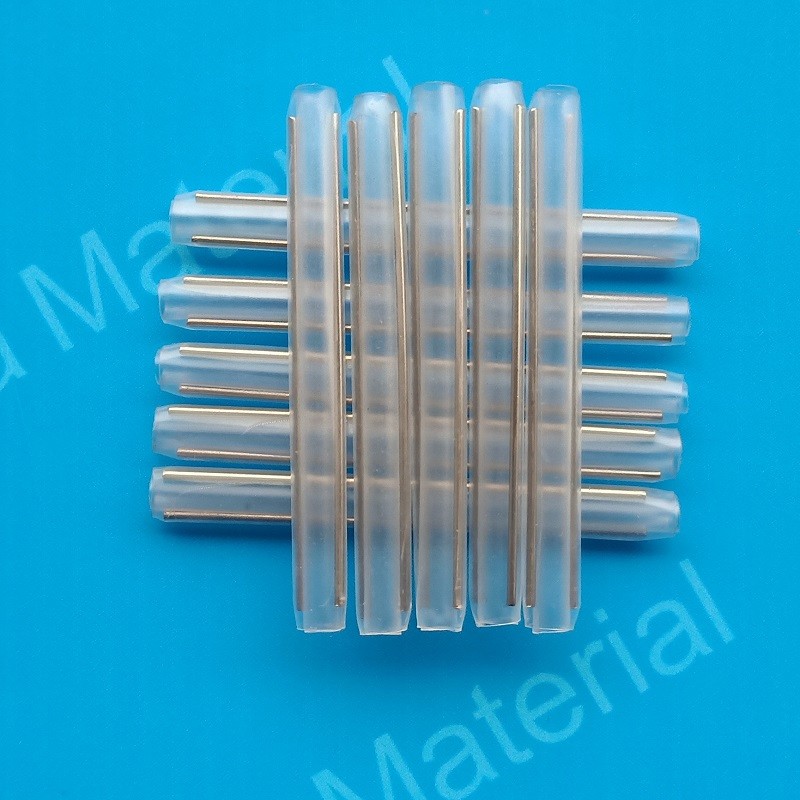

   45mm Drop Cable Fiber Optic Patchcord Joint Protection Fiber Heat Shrink Sleeves is a special polyolefin thermal-shrinkable sleeve, also called EVA. The outer layer is made of high quality soft crosslinked polyolefin material and inner hot-melt adhesive. The outer layer has the characteristics of insulation, corrosion prevention and wear resistance, while the inner layer has the advantages of low melting point, waterproof seal and high adhesion. Chengdu Focus Infra Materials company is manufacturing a wide range of fiber protection sleeves to meet the market requirements.

  Drop Cable Protect Fiber Heat Shrink Sleeves can Moisture resistant for environmental protection Clear sleeve make it easy to detect splice before shrinkage Easily use and avoid any damages to the optical fiber during installation Color optical fiber splice protector is very convenience for installation.

Product advantages:

1. Not affect the optical conductivity of the spliced fiber

2. Easy operation, reduce the damage of optical fiber duringl installation

3. Strong practicality

4. Transparent casing

5. Quickly shrink, improving work efficiency

6. extend the service life of the fiber

Technical Parameters:

Specification

Test method

Typical data

Tensile strength(MPa)

ASTM D 2671

18

Elongation at Break (%)

ASTM D 2671

700

Density(g/cm2)

ISO R1183D

0.94

Dielectric strength (KV/mm)

IEC 243

20

Permittivity

IEC 243

2.5

Length rate of change (%)

ASTM D 2671

+5


Fiber Optic Sleeves

Fiber Optic Splice Protect Shrinkable Sleeves


Chengdu Focus Infra  Material Co.,Ltd

–––Professional heat shrinkable supplier

Company was established in 2014. With the sustained business conception of "adhering to client-centric, offering prompt service, embracing the values of Integrity, keeping on the improvement, striving to meet rising demand of clients", we earn the recognition from existing and new clients.

We are specialized in research, develop, manufacture and sale of radiation cross-linked heat shrinkable material and other functional polymer material. Our production apply to a wide range of applications in electronics, electrical, energy, telecommunication, automotive, aviation and marine vessels. We are committed to bring solutions our customers. New products are continuously being developed and added to our line. Please contact our dedicated sales and service team for the latest news.
